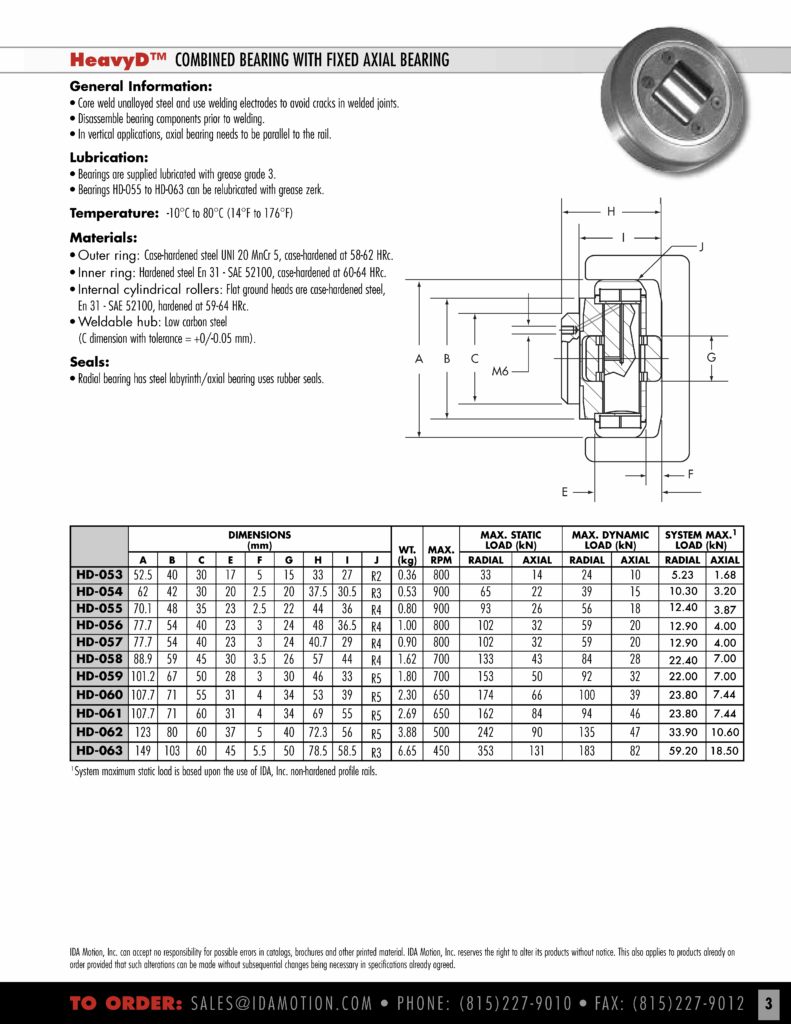

HeavyD™ Combined Bearings with Fixed Axial Roller

Also known as Combi Bearings, the HeavyD™ combination bearing is the ideal choice for any heavy duty linear motion application that has high loads with a low precision requirement.

The combined bearing has the added benefit of handling axial and radial forces simultaneously with an integrated axial roller set inside the radial roller bearing.

Because of this unique property, these combi rollers are perfect for forklifts (mast guide bearings), palletizers and depalletizers, cranes and hoists, vertical and horizontal feed units, shrink wrappers, overhead conveyors and any other high load material handling applications.

This particular bearing’s inner axial roller is fixed – meaning the overall height of the roller can not be changed.

HeavyD™ Combined Bearing with fixed axial roller goes by the following part numbers: HD-053, HD-054, HD-055, HD-056, HD-057, HD-058, HD-059, HD-060, HD-061, HD-062 and HD-063

Equivalent: HYV 30201, HYV-30201, HYV30201, LB-HYV30201, LBHYV30201, LBYHYV30201, 4.059+PL(ECC)

Forklift Mast Guide Roller and Mast Guide Roller Forklift Bearings: MR.020, MR.021, MR.022, MR.023, MR.025, MR.027, MR.029, MR.030

For more information on HeavyD™ combined bearings, visit: https://www.combined-bearing.com

For more information on IDA Motion products and services, visit: https://www.idamotion.com
